SMC PF2A703H-10-69 digital flow sw, integ sensor, IF/PFA FLOW SWITCH

Part Number PF2A703H-10-69

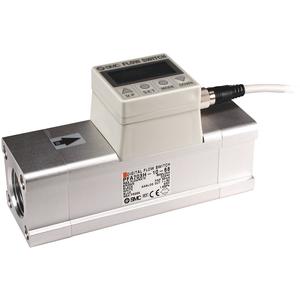

SERIES IMAGE-FOR REFERENCE ONLY

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Price

Your Price: $725.95

Availability Available to Ship Today: 0

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

SIMILAR ITEMS IN STOCK

Description

This is a legacy product. Please contact us for the latest version.
[email protected]

Documents:

Series Catalog

Click Here for Return Policy

SMC Part Description:

DIGITAL FLOW SW, INTEG SENSOR

SMC Products Line:

INSTRUMENTATION

SMC Family:

IF/PFA FLOW SWITCH

SMC Family Code:

SMC Class Description:

IF/PFA 1 INCH PT VERSION

Weight:

3.27018 lb

Model

Measured fluid

Detection type

Rated flow range Note 1)

Minimum set unit Note 1)

Note 2)Display units

Operating pressure range

Proof pressure

Pressure loss

Accumulated flow range

Linearity Note 3)

Repeatability

Pressure characteristics

Temperature characteristics

Output specifications

Response time

Hysteresis

Power supply voltage

Current consumption

Resistance

Weight

Port size (Rc, NPT, G)

PF2A703H

Dry air, Nitrogen

Heater type

150 to 3000 l/min

5 l/min

Real-time flow rate

Accumulated flow

0.1 to 1.5 MPa

2.25 MPa

20 kPa (at maximum flow rate)

0 to 9,999,999,999 l

?1.5% F.S. or less (0.7 MPa, at 20C)

?1.0% F.S. or less (0.7 MPa, at 20C), ?3.0% of F.S. or less in case of analog output

?1.5% F.S. or less (0.1 to 1.5 MPa, based on 0.7 MPa)

?2.0% F.S. or less (0 to 50C, based on 25C)

Switch output Note 4)

Accumulated Note 4)pulse output

Analog output Note 5)

1 sec. or less

Hysteresis mode: Variable (can be set from 0); Window comparator mode: (can be set from 0 to 3% F.S.)

24 VDC (ripple ?10% or less)

150 mA or less

Enclosure

Operating temperature range

Withstand voltage

Insulation resistance

Vibration resistance

Impact resistance

Noise resistance

1.1 kg (without lead wire)
