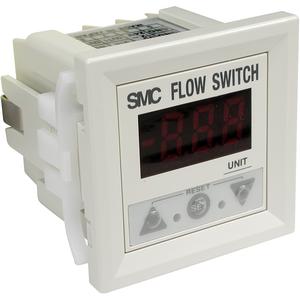

SMC PF2A300-A-M digital flow sw,remote display, IF/PFA FLOW SWITCH

Part Number PF2A300-A-M

SERIES IMAGE-FOR REFERENCE ONLY

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Price

Your Price: $250.00

Availability Available to Ship Today: 0

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

SIMILAR ITEMS IN STOCK

Description

This is a legacy product. Please contact us for the latest version.
[email protected]

Documents:

Series Catalog

Click Here for Return Policy

SMC Part Description:

DIGITAL FLOW SW,REMOTE DISPLAY

SMC Products Line:

INSTRUMENTATION

SMC Family:

IF/PFA FLOW SWITCH

SMC Family Code:

SMC Class Description:

IF/PFA NO SIZE ALL OTHERS

Weight:

.21724 lb

Model

Flow rate measurement range Note 1)

Set flow rate range Note 1)

Minimum set unit Note 1)

Accumulated pulse flow rate exchange value (Pulse width: 50 ms) Note 1)

Note 2, 3) Display units

Accumulated flow range Note 4)

Linearity Note 5)

Repeatability Note 5)

Temperature characteristics

Current consumption (No load)

Weight

Output Note 6)specifications

Indicator light

Status LED?s

Power supply voltage

Response time

Hysteresis

Resistance

PF2A300/301

0.5 to 10.5 l/min

0.1 l/min

0.1 l/pulse

Real-time flow rate

Accumulated flow

0 to 999999 l

?5% F.S. or less

?1% F.S. or less

?1% F.S. or less (15 to 35C, based on 25C)?2% F.S. or less (0 to 50C, based on 25C)

50 mA or less

45 g

Switch output

Accumulated pulse output

3-digit, 7-segment LED

Illuminates up when output is ON OUT1: Green; OUT2: Red

12 to 24 VDC (ripple ?10% or less)

1 sec. or less

Hysteresis mode: Variable (can be set from 0), Window comparator mode Note 7) : Fixed (3-digits)

Enclosure

Operating temperature range

Withstand voltage

Insulation resistance

Vibration resistance

Impact resistance

Noise resistance
